Medical Disposable PVC Closed Suction Catheter with 24hours

Medical Disposable PVC Closed Suction Catheter with 24hours

Brand Name: MCreat
Model Number: MC-02426
MOQ: 5000 Pieces
Price: 2.3-2.4 usd/pc
Payment Terms: L/C, T/T
Supply Ability: 90000PCS/Month
Detail Information
Place of Origin:
China
Certification:
FDA, ISO
Item Name:
Endotracheal Suction Catheter
Size:
14Fr
Relative Type:
24h/Child/Adult
Brand:
MCR/OEM
Samples:
Available
Usage:
Single-use
Elows:
Swiel
Tip:
Blue Soft
Tube Lenth:
300mm/600mm
Connector:
Double Swivel
Packaging Details:
1 Pc/Pouch, 10 Pouches/Box, 10 Boxes/Carton
Supply Ability:
90000PCS/Month
Product Description

Medical Disposable PVC Closed Suction Catheter with 24hours



Specification For PVC Closed Suction Catheter

Product Code Size Colour Code Tube OD (mm) Length of Tube (mm)
MC-22400 Neonatal/24H/Tracheostomy Grey 5Fr(1.7mm) 300mm
MC-22401 Neonatal//24H/Tracheostomy Light Green 6Fr(1.95mm) 300mm
MC-22402 Pediatric/24H/Tracheostomy Lvory 7Fr(2.3mm) 300mm
MC-22403 Pediatric//24H/Tracheostomy Light Blue 8Fr(2.7mm) 300mm
MC-22404 Adult/24H/Tracheostomy Black 10Fr(3.35mm) 300mm
MC-22405 Adult/24H/Tracheostomy White 12Fr(4.05mm) 300mm
MC-22406 Adult/24H/Tracheostomy Green 14Fr(4.75mm) 300mm
MC-22407 Adult/24H/Tracheostomy Orange 16Fr(5.45mm) 300mm

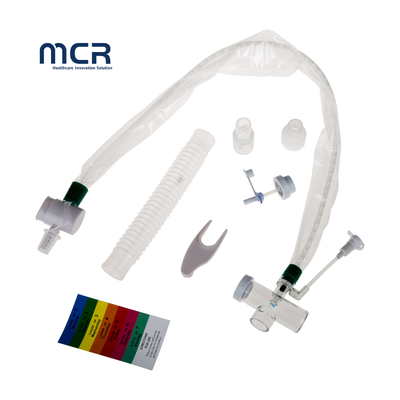

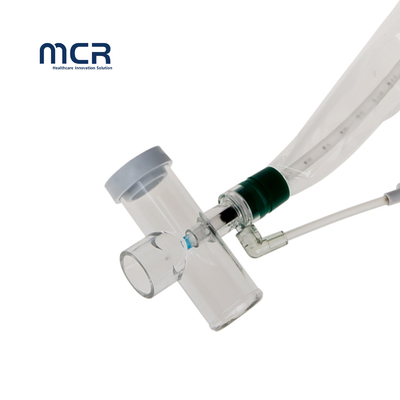

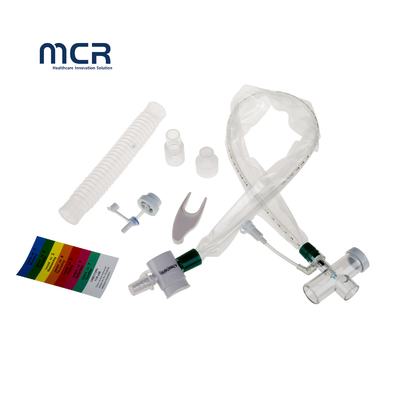

Struchure For PVC Closed Suction Catheter



Description:

  • The T-PC suction catheter consists of a long, flexible tube with a rounded, atraumatic tip designed for insertion into the tracheostomy or percutaneous tracheostomy site.
  • The catheter has a unique "T-shaped" configuration, with a side port or branch that allows for continuous suction while the catheter is in place.
  • The catheter is enclosed within a sterile, airtight sleeve or sheath, creating a closed suction system to minimize the risk of infection and contamination.
  • The proximal end of the catheter is connected to a suction source, such as a wall-mounted or portable suction unit, to provide the necessary negative pressure for suctioning.

Purpose:

  • Enables the removal of accumulated secretions, mucus, and other debris from the patient's airway through the tracheostomy or percutaneous tracheostomy site.
  • Helps maintain a clear and patent airway, preventing the buildup of secretions that could lead to respiratory complications such as atelectasis, pneumonia, or airway obstruction.
  • Facilitates effective airway management and clearance in patients who are unable to effectively clear their own secretions due to various medical conditions or respiratory impairments.
  • Maintains a closed, sterile suction system to minimize the risk of infection and cross-contamination during the suctioning procedure.

Key Features:

  • Unique "T-shaped" design with a side port or branch for continuous suction while the catheter is in place.
  • Flexible, atraumatic catheter tip to minimize discomfort and trauma during insertion into the tracheostomy or percutaneous tracheostomy site.
  • Sterile, airtight sleeve or sheath that creates a closed suction system to prevent contamination.
  • Integrated suction control mechanism, such as a thumbhole or slide valve, to regulate the level of suction applied.
  • Availability in different catheter sizes and lengths to accommodate various tracheostomy or percutaneous tracheostomy tube sizes and patient needs.

Benefits:

  • Provides a continuous suction capability, allowing for effective and efficient removal of secretions without the need for repeated insertions and withdrawals of the catheter.
  • Helps maintain a clear and patent airway, improving the patient's respiratory function and overall oxygenation.
  • Reduces the risk of respiratory complications, such as atelectasis, pneumonia, and airway obstruction, by effectively clearing secretions.
  • Maintains a closed, sterile system during the suctioning process, minimizing the risk of infection and cross-contamination.
  • Offers a safe and controlled method of suctioning for the patient, reducing the discomfort and trauma associated with the procedure.
  • Contributes to the overall care and well-being of the tracheostomy or percutaneous tracheostomy patient.
