| Brand Name: | MCreat |
| Model Number: | MC-22401 |
| MOQ: | 5000 Pieces |
| Price: | 2.8-3 usd/pc |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 90000PCS/Month |
T Piece Closed Suction System With Soft Tip Suction Tube For Endotracheal Intubation
Specification For T Piece Closed Suction System
| Product Code | Size | Colour Code | Tube OD (mm) | Length of Tube (mm) |
| MC-22400 | Neonatal/24H/Tracheostomy | Grey | 5Fr(1.7mm) | 300mm |
| MC-22401 | Neonatal//24H/Tracheostomy | Light Green | 6Fr(1.95mm) | 300mm |
| MC-22402 | Pediatric/24H/Tracheostomy | Lvory | 7Fr(2.3mm) | 300mm |
| MC-22403 | Pediatric//24H/Tracheostomy | Light Blue | 8Fr(2.7mm) | 300mm |
| MC-22404 | Adult/24H/Tracheostomy | Black | 10Fr(3.35mm) | 300mm |
| MC-22405 | Adult/24H/Tracheostomy | White | 12Fr(4.05mm) | 300mm |
| MC-22406 | Adult/24H/Tracheostomy | Green | 14Fr(4.75mm) | 300mm |
| MC-22407 | Adult/24H/Tracheostomy | Orange | 16Fr(5.45mm) | 300mm |

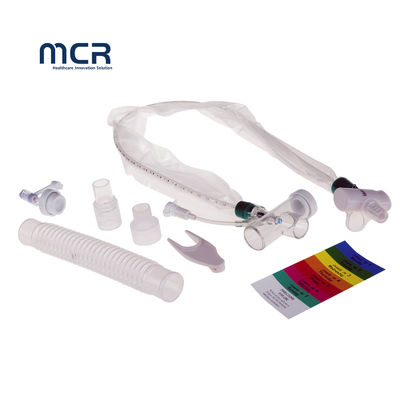

Struchure For T Piece Closed Suction System

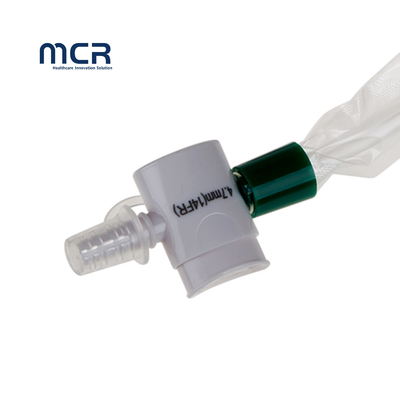

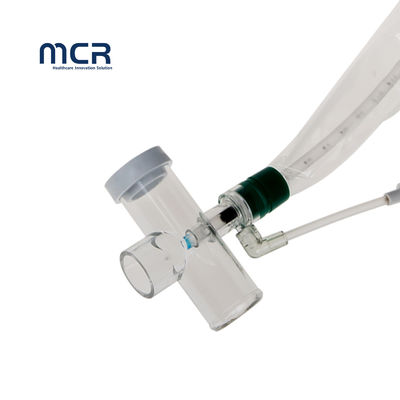

T-piece connector - Attaches to the ventilator circuit and patient airway.
Suction catheter - Passed down the T-piece to access the airway and remove secretions.
Suction control valve - Allows the clinician to start and stop the suction.
Product Information For T Head Closed Suction Catheter
The Closed Suction Catheter is a suctioning device to remove secretions from patients receiving
mechanical ventilation.
Soft and smooth blue suction tip. This design reduces damage to mucous membranes.
Allow the patients' breath-mechanical ventilation and suctioning simultaneously.
Prevent cross infection. The PU protective sleeve can protect the caregivers from infection.
Double swivel connectors reduce strain on ventilator tubing.
Easy operation in suction process by being equipped with a wedge to disconnect and clip functions.
Available for tracheostomy tubes. The suction catheters match tracheostomy tubes, of which different
lengths are available. The catheters are marked with accurate depth to understand the proper catheter
insertion in the tracheal.
Color coded rings provide fast recognition.
Advantage For T Piece Closed Suction System
Infection control: The closed system helps prevent the introduction of pathogens into the patient's respiratory tract during the suctioning process, reducing the risk of healthcare-associated infections.
Reduced exposure to secretions: The enclosed design of the closed suction catheter minimizes the healthcare worker's exposure to the patient's respiratory secretions, which can be a source of potential infection.
Maintains ventilation: The closed suction system allows for continuous ventilation during the suctioning procedure, minimizing disruption to the patient's respiratory support.
Improved oxygenation: The closed design helps maintain positive end-expiratory pressure (PEEP) and prevents derecruitment of alveoli, which can lead to improved oxygenation.
Ease of use: The closed suction catheter is pre-packaged and ready to use, reducing the time and effort required for setup compared to an open suction system.
Patient comfort: The closed system is generally less disruptive and more comfortable for the patient, as it reduces the need for disconnecting the ventilator circuit.
