| Brand Name: | MCreat |
| Model Number: | MC-07220 |
| MOQ: | 1000 Pieces |
| Price: | 2.9 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100, 000PCS/Month |

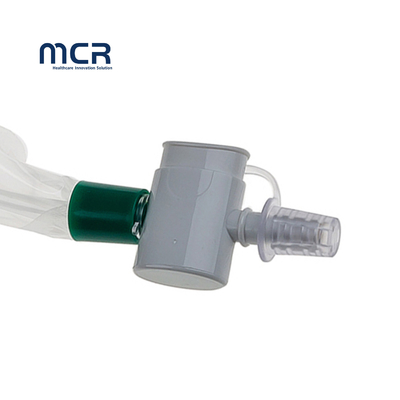

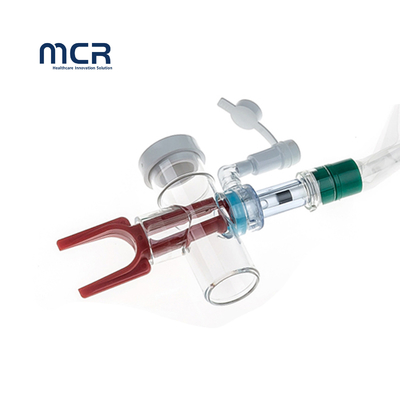

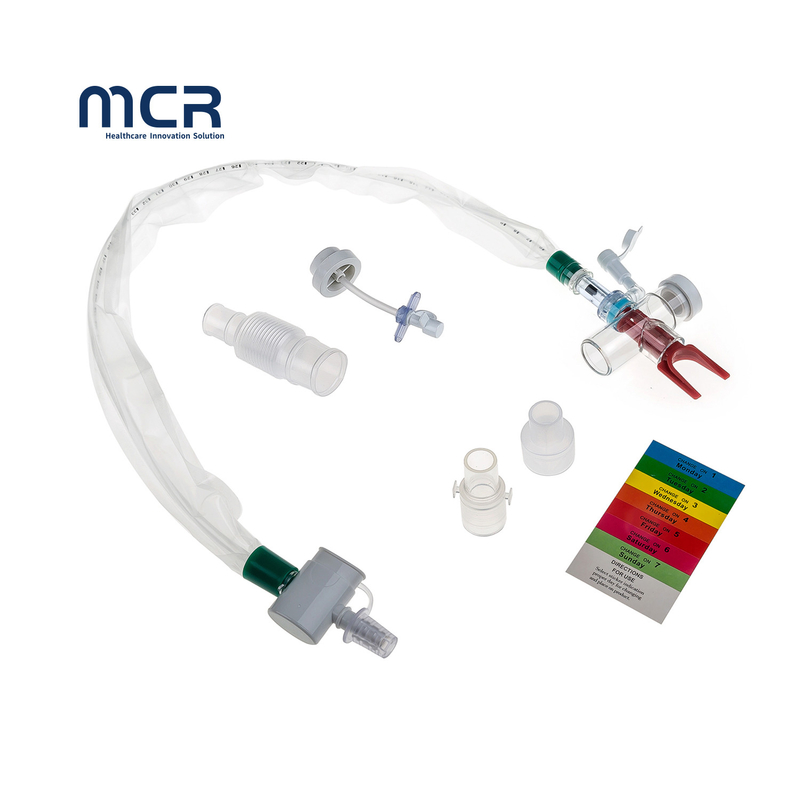

Tracheostomy Closed Suction Tube For 72 Hours Treatment
Closed Suction System features a compact rotating manifold that provides multiple ports to access the patient’s airway,
without jeopardising integrity of the closed circuit. A closed circuit helps you protect your patient from cross-contamination,
VAE and VAP.
Product Description
| Clour | Size | Products' Specification & Description | Tube OD | Length of Tube | Product Code |
| Black | T-Piece Adult/72H/Endotracheal | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 10Fr (3.35mm) | 600mm | MC-07230 |
| White | T-Piece Adult/72H/Endotracheal | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 12Fr (4.05mm) | 600mm | MC-07231 |
| Green | T-Piece Adult/72H/Endotracheal | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 14Fr (4.75mm) | 600mm | MC-07232 |
| Orange | T-Piece Adult/72H/Endotracheal | T-Piece Endotracheal, MDI, Swivel Adapter, Flex Tube | 16Fr (5.45mm) | 600mm | MC-07233 |
| Black | T-Piece Adult/72H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 10Fr (3.35mm) | 300mm | MC-07220 |
| White | T-Piece Adult/72H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 12Fr (4.05mm) | 300mm | MC-07221 |
| Green | T-Piece Adult/72H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 14Fr (4.75mm) | 300mm | MC-07222 |
| Orange | T-Piece Adult/72H/Tracheostomy | T-Piece Tracheostomy, MDI, Swivel Adapter, Flex Tube | 16Fr (5.45mm) |
300mm | MC-07223 |
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs/inner box, Outer packing: 100pcs/shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order.
-Instructions for Use
Set up Procedure
1. Inspect the product before use. Do not use it if the package is not intact.
2. Open the sealed package and remove the product.
3. Connect the Endotracheal Tube/Tracheostomy Tube to the Revolvable adapter.
4. Connect ventilator tube to the Revolvable Ventilator Connector.
5. Attach the date label to the color ring.
6. Before suctioning commences, ensure that the cap of the MDI Port and Irrigation Port is closed.
7. Before suctioning: Please ensure that the on-off valve is in the open position. Simply slide the on-off valve to a position which allows the catheter to enter the Endotracheal tube/Tracheostomy tube.
Packaging & Delivery
-Packaging Details
-Packing: 1pc/sterilized pouch, 10pcs / inner box, Outer packing: 100pcs / shipping carton
-Delivery Time: Within 20 days. It depends on the quantity of order
Product Description
